Planning an industrial control panel upgrade in Cornwall? Before a Falmouth factory asks for a replacement cabinet, it needs to establish what the controls must do, what they connect to and who is responsible for each part of the change.
Replacing the electrical hardware does not settle questions about software, machine behaviour or operating instructions. This control panel upgrade checklist helps site managers prepare a survey brief, compare scopes and agree what a successful handover should include.
What does the control-panel upgrade actually include?
An industrial control panel retrofit may retain the enclosure and some existing equipment while changing selected controls or interfaces. A factory control panel replacement has a different physical scope, but still needs decisions about what remains connected and how it should operate.
Separate investigation and design from installation, specialist changes, testing and handover. Ask which stages are included in the quotation and which depend on another party; ‘panel upgrade’ is not a complete specification. Maenporth’s industrial controls service covers control-panel work, electrical interfaces, upgrades and documentation support. The exact project scope needs to be agreed for the individual site.
For comparable quotations, ask each proposal to state what will be retained, what will change and which assumptions need checking. Missing records may mean an initial survey is needed before the replacement scope can be priced with confidence.
Start with the operating problem, not a new panel
Describe the problem in operational terms: repeated unexplained stops, difficult fault-finding, components becoming hard to source, or controls that no longer match the process. These are reasons to investigate, not proof that the whole panel needs replacing.
Record when the issue occurs and what operators observe through normal use. Separate existing faults from requested improvements: restoring the present sequence is a different brief from changing how two machines work together.
Set an observable objective, such as clearer alarm information or an agreed operating sequence. Make it more reliable needs a shared definition of how the proposed work will address the recorded problem.
Gather existing records without opening the panel
Bring together information already available through site records and normal authorised access:
- Existing electrical drawings, panel layouts, equipment manuals and records of previous alterations.
- Panel and machine identifiers, plus photographs of closed enclosures and externally visible labels taken from safe, authorised areas.
- Fault histories and maintenance reports, including any recorded temporary changes.
- The current operating sequence, alarm information and operator instructions.
- Details of any programmable logic controller (PLC), operator display and software backups, if already documented.
- Known production constraints, shutdown opportunities and the people who hold missing information.
Treat old drawings as a starting point, not proof of the current arrangement. Flag gaps for the survey; do not open, test or trace wiring to fill them.

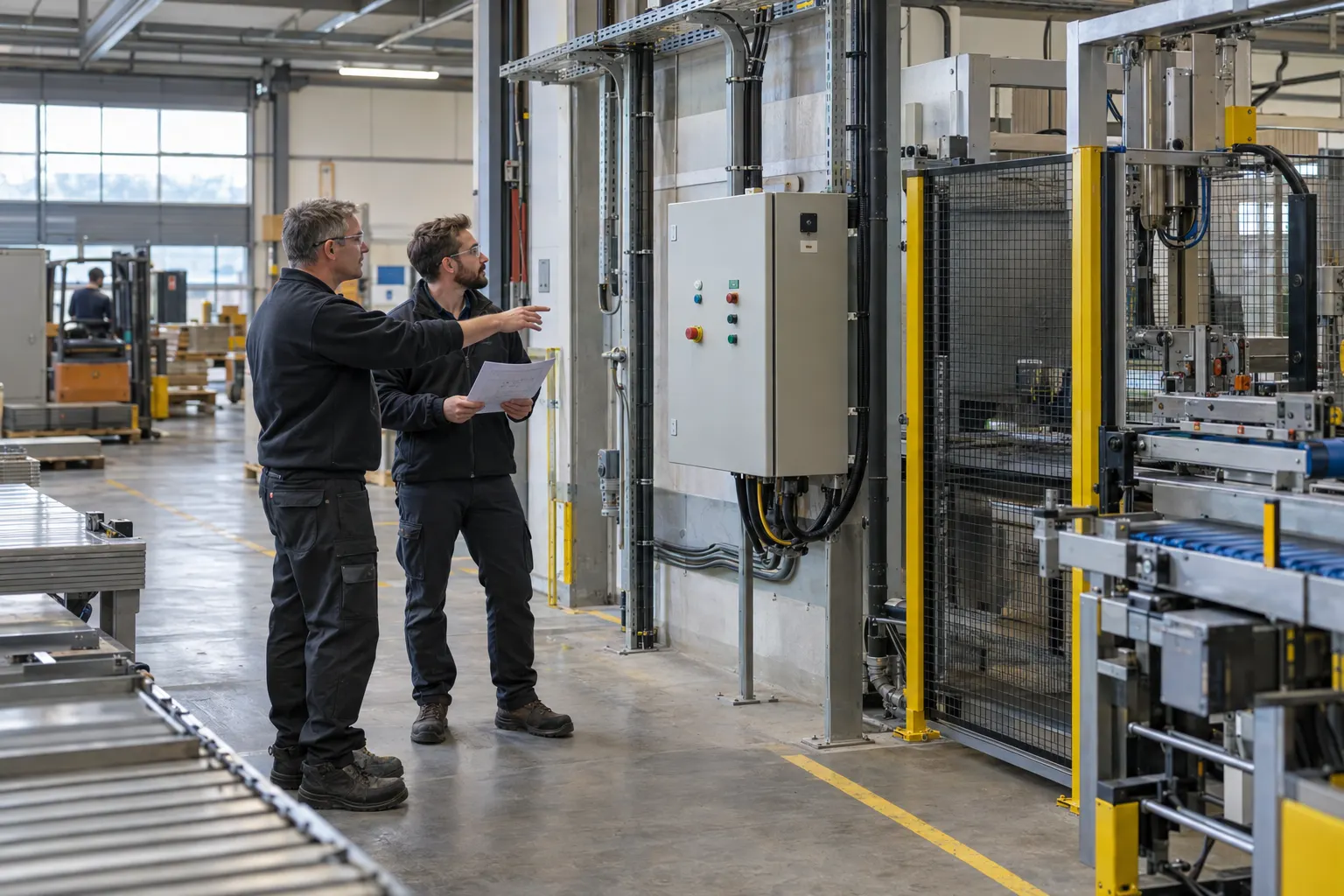

Map the interfaces beyond the cabinet

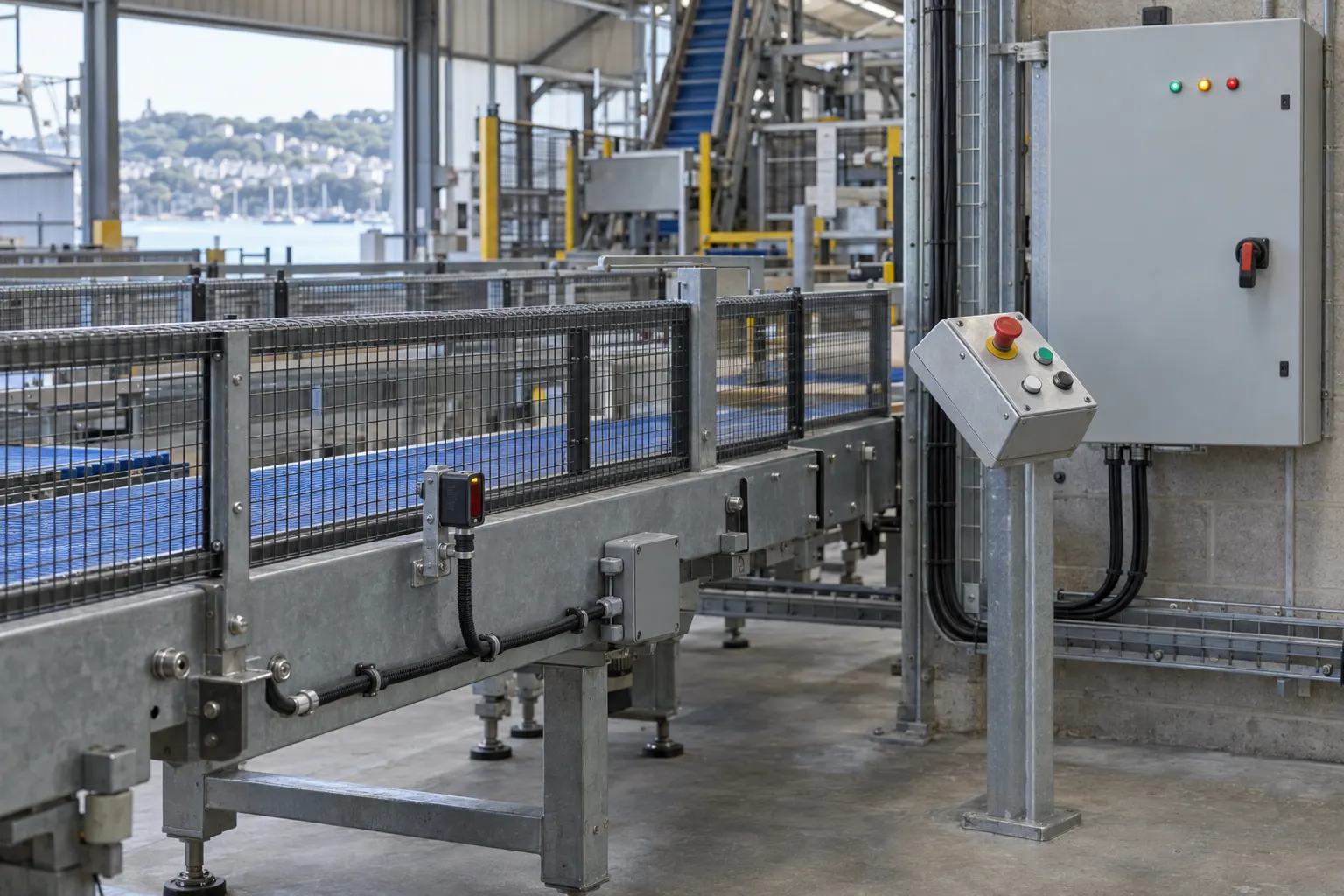

List every machine or system known to exchange signals with the panel. Depending on the process, this could include sensors, valves, conveyors, alarms or another control panel. Use existing records and operator knowledge rather than investigating connections yourself.
For each interface, record its purpose, the equipment involved, who owns it and where supporting information is held. Identify anything shared with neighbouring equipment, such as a stop request or fault indication.
Include a plain-English account of the intended sequence. For example, if one conveyor should wait for downstream equipment, record that expectation and any known exceptions. The survey can then establish what must remain compatible and whether a change would affect neighbouring equipment, not just the cabinet.
Check whether the existing documents cover those interfaces or only the equipment inside the panel. Where responsibility crosses between suppliers, note whose information or attendance is needed to resolve it.

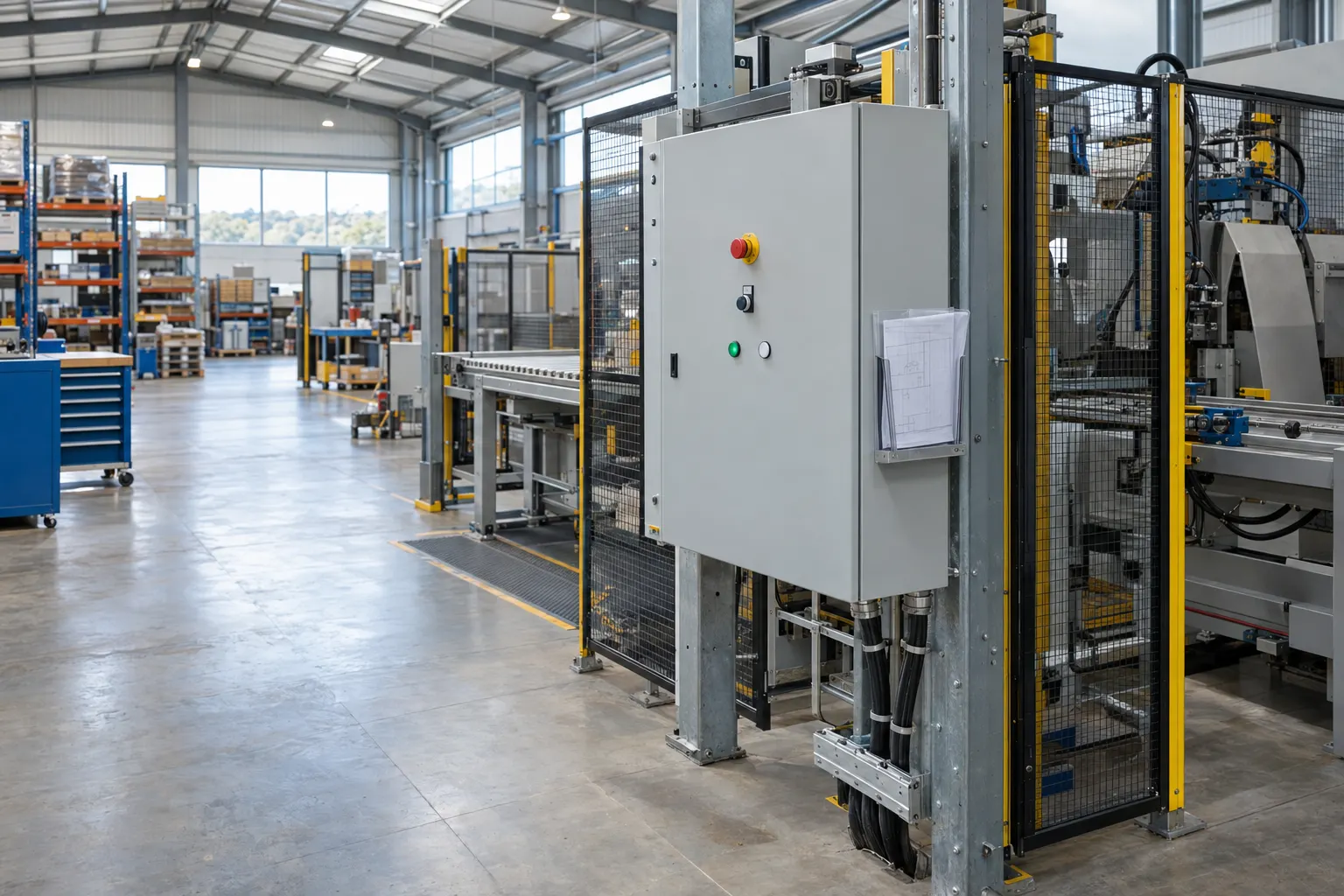

Check access, site conditions and future maintenance
Explain how the panel is reached during routine work and shutdowns. Include restricted access, storage obstructing the working area and any dependency on another contractor for access.
Report actual conditions around the enclosure, such as dust, moisture, washdown or corrosion. A coastal address alone is not a specification. Discuss spare space, readable identification, access to replaceable parts and component support.
Ask whether a future maintainer will be able to identify replacement components without relying on one person’s memory. Record likely future process changes for the survey, rather than assuming spare cabinet space guarantees that extra functions can be added.
Agree safety, software and commissioning responsibilities
Agree named leads for the electrical work, machine operation and any specialist controls input. Do not assume that panel work includes panel manufacture, PLC programming, safety-function validation or process commissioning.
Safety functions belong to the whole machine
Identify which emergency stops, guards and interlocks may be affected, and who will assess and verify their operation. HSE’s guidance on work on electrical equipment and machinery emphasises planning, competence and care around safety-related equipment.
If the proposal changes what the machine does rather than simply renewing components, flag that early for specialist assessment.
Software and process trials need their own owner
Where software is involved, confirm who controls access, holds suitable backups and can support changes. Agree who will run process trials, which operations staff must attend and who decides whether the machine is ready for use.
Check whether software files, access permissions and any necessary licences are available to the authorised specialist. Missing access or support should be treated as a planning constraint, not discovered during changeover.
Define acceptance before agreeing the changeover
Set the intended shutdown window and the conditions for handing the equipment back. Discuss whether a staged changeover or a practicable fallback is available; returning to the old arrangement is not always simple.
The acceptance plan should distinguish electrical checks from confirmation of control sequences, alarms, safety functions and performance under operating conditions. Ask the relevant competent people to define the inspection and testing needed for the actual changes and risks.
Agree what evidence will demonstrate each requirement and who records the result. A panel powering up does not, by itself, establish that all the agreed machine functions have been checked.
Plan attendance as well as the outage. Operators, maintenance staff and any machinery or software specialist may need to be available for different checks. Agree who authorises return to service, how defects that prevent release will be resolved and what happens if checks cannot be completed within the window. The end of the shutdown is not automatic acceptance.
Leave records the next maintainer can use
Specify the handover records: updated drawings, a record of changes, test and functional-check results, operating information and any agreed software backups. Make sure the people responsible for industrial electrical maintenance can access them, with unresolved items clearly recorded.
Agree who will brief operators on altered controls and who will keep the final records up to date, including changes made during the trials.
Prepare a clear brief for a Falmouth survey
Before making contact, have a short description of the problem, the panel’s location, available records, connected equipment, shutdown constraints and the site contact ready. It is fine to have gaps; identify them so the first discussion can establish what the survey needs to resolve.
Maenporth Electrical Ltd is based at Maenporth and serves Falmouth, Penryn and the wider Cornwall area. To discuss the scope of an existing control-panel upgrade, call 01326 250297.
