Commercial sites rarely grow in one neat step. A new kitchen appliance, workshop machine, heat pump, air-conditioning system or bank of EV chargers may be added months or years apart. Each project can appear manageable on its own, while the combined demand gradually approaches the limits of the incoming supply or the site’s internal distribution.
Commercial electrical capacity planning establishes what the installation can support now, what the proposed equipment will require and where upgrades may be needed. It is more useful than simply checking whether a distribution board has an unused way.
For businesses in Falmouth, this can be particularly important where seasonal occupancy, visitor demand or changing operating hours create peaks that are not obvious from an average electricity bill. Maenporth Electrical’s commercial electrical services can support the site review, testing and practical upgrade work needed to build a workable plan.
Why apparent spare capacity can be misleading
An empty way in a distribution board provides physical room for another protective device. It does not confirm that the board, its supply cable, the main switchgear or the incoming connection can carry the proposed load.
Capacity must be considered across the complete route from the point of supply to the new equipment. The HSE guidance on the Electricity at Work Regulations highlights the need to consider equipment ratings, likely loads, fault conditions and suitable protective devices when assessing an electrical system.
Three related figures also need to be kept separate:
- Connected load is the total rating of equipment attached to the installation.
- Maximum demand is the highest demand the installation, or a defined part of it, is expected to place on the supply.
- Available headroom is the capacity remaining after the existing and reasonably foreseeable demand has been assessed.
Adding every nameplate rating together can overstate normal demand because equipment does not always operate simultaneously. Applying an optimistic diversity allowance can create the opposite problem. The assessment needs to reflect how the particular site actually works.
Start with evidence from the operating site
Energy bills show how much electricity has been consumed over a billing period. They do not necessarily reveal short periods of high demand, whether one phase is more heavily loaded than the others or which activities coincide to create a peak.

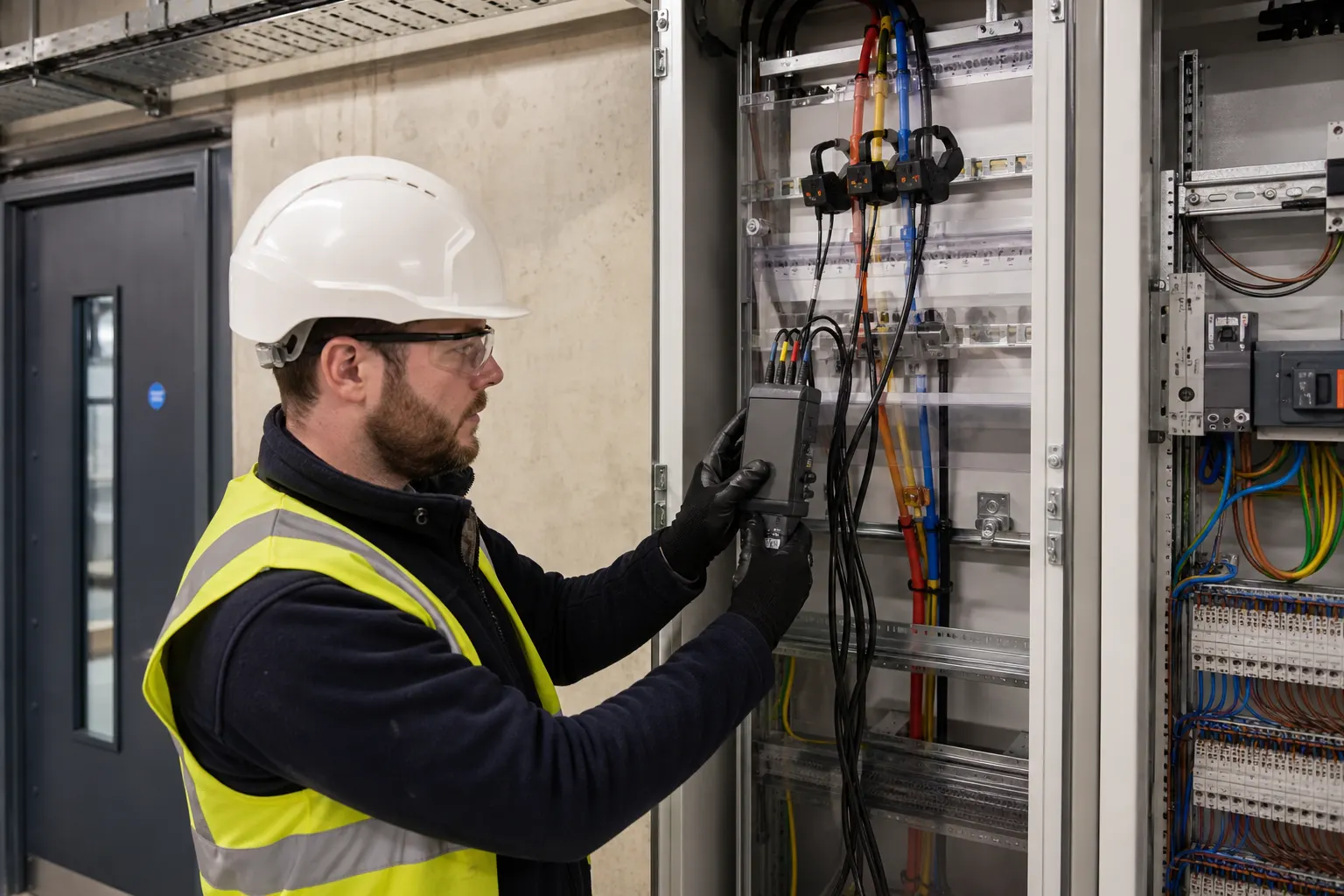

Where available, half-hourly metering information can provide a useful starting point. Temporary electrical load monitoring may then give a more detailed view of the installation or selected sub-distribution boards. Depending on the scope and equipment used, monitoring can help establish:
- current on each phase;
- the size and duration of demand peaks;
- the time of day at which peaks occur;
- whether large loads start at the same time;
- phase imbalance;
- power factor and other relevant power-quality indicators;
- differences between normal, busy and reduced operation.
The monitoring period should represent meaningful site conditions. A quiet week at a holiday business may not demonstrate summer demand. Equally, data captured while production equipment is shut down for maintenance will not represent a factory’s normal operating profile.

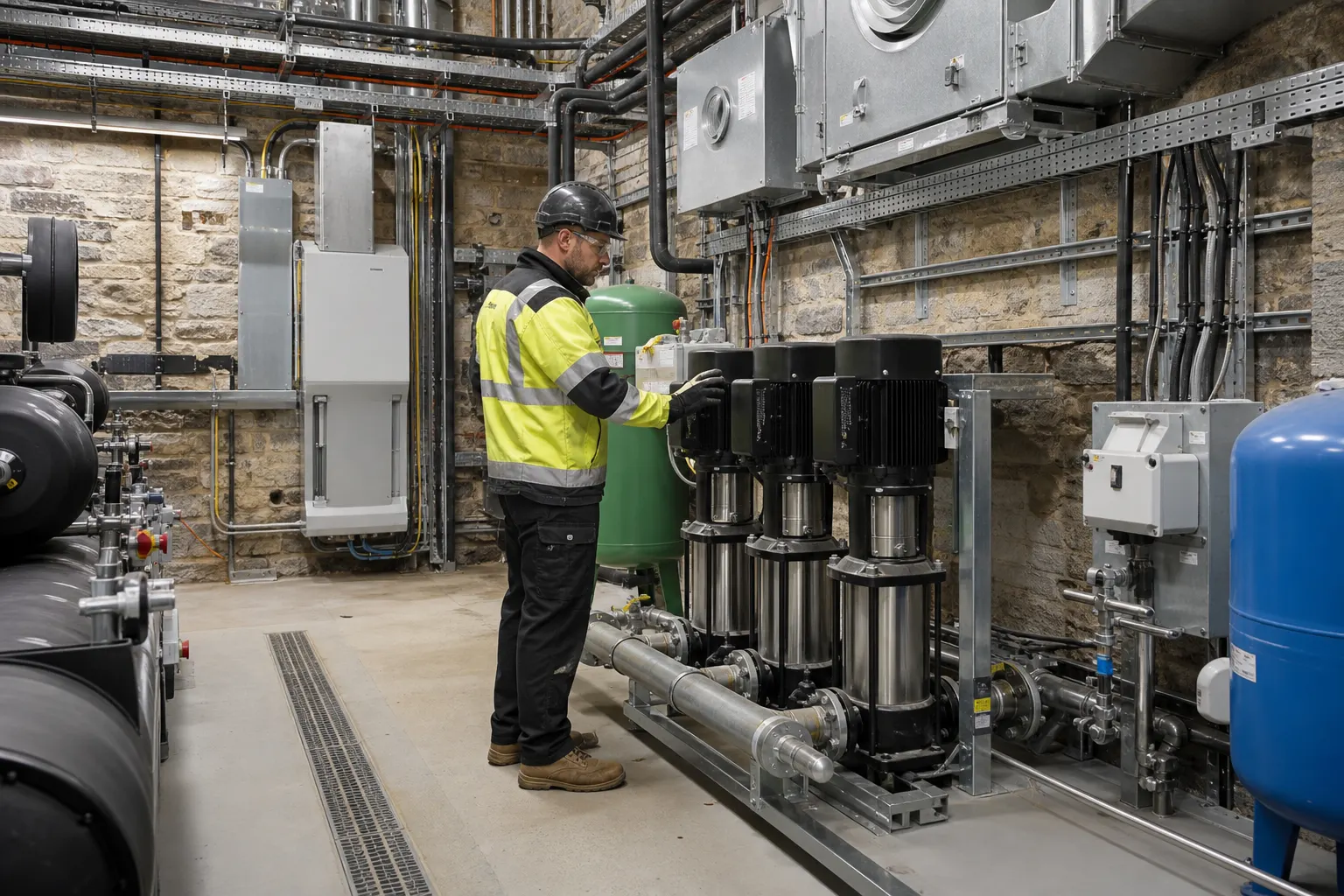

Short-duration starting currents also matter. Motors, compressors, pumps and some other equipment can impose different demands during starting and normal operation. The capacity review therefore combines measurements with knowledge of the equipment and its operating sequence.
Review the whole electrical distribution path

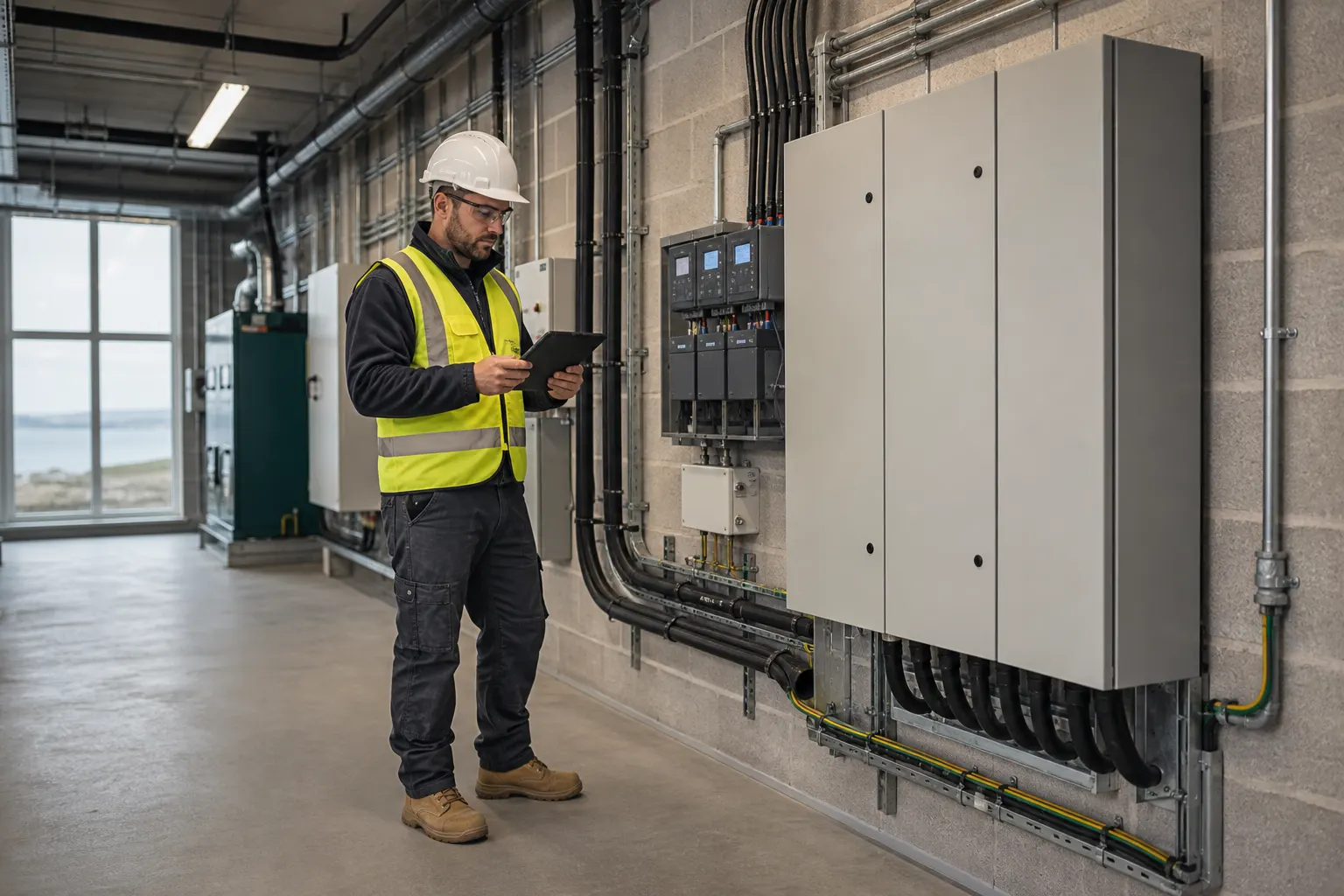

Measured demand is only one part of the survey. Existing equipment must be inspected and its ratings, condition and arrangement understood. The review may extend from the incoming supply and main switchboard through submains, distribution boards and final circuits.
Relevant checks can include the agreed supply capacity, main protective device, switchgear and busbar ratings, cable sizes and installation methods, protective-device coordination, earthing arrangements, phase balance and the suitability of routes for additional cabling.
Older or repeatedly altered sites can present further complications. Labels may no longer match the circuits they are intended to identify. Several generations of distribution equipment may be in service, and drawings may not reflect later additions. Confirming what is actually installed prevents a new project from being designed around unreliable records.
Site conditions also influence the solution. Coastal exposure, damp plant areas, dust, mechanical damage risks and long cable routes across larger rural premises can all affect equipment selection and installation design. Capacity cannot be separated from the environment in which the system must operate.
Define the proposed loads before designing the upgrade
A useful plan needs more than a broad instruction to allow for a new machine or electrify the heating. The electrical designer needs accurate information about each proposed load, including:
- rated power and supply voltage;
- single-phase or three-phase connection;
- starting current and starting method;
- normal duty cycle and hours of operation;
- whether the load is continuous, intermittent or seasonal;
- power factor and harmonic characteristics where relevant;
- manufacturer requirements for isolation and protection;
- whether later expansion is likely.
The expected operating scenarios should then be considered. For example, will new heating operate at the same time as kitchens, laundry equipment or vehicle charging? Could production machinery restart together after a power interruption? Which loads are operationally critical, and which could be delayed briefly?
On-site solar generation does not automatically create dependable import capacity whenever a business needs it. Solar output varies, while the site’s peak may occur at another time. Battery storage or controlled loads can form part of a wider strategy, but they must be designed around realistic operating conditions rather than assumed to remove every capacity constraint.
What happens when the existing capacity is tight
An assessment does not always lead directly to a larger incoming supply. The appropriate response depends on the measured profile, equipment condition, future plans and the consequences of an interruption.
Possible measures include balancing single-phase loads more effectively, changing equipment operating sequences, using designed load-management controls, avoiding simultaneous motor starts or replacing inefficient equipment. These approaches must preserve the safe and reliable operation of the site; they are not a substitute for an adequately rated installation.
Internal work could involve a new submain, an upgraded distribution board, replacement switchgear, revised protective devices or larger cables. Where the required demand exceeds the agreed or physical capacity of the incoming connection, an application to the local distribution network operator may be necessary.
Network reinforcement or changes at the point of supply can affect both programme and cost. Engaging with the connection process early is therefore preferable to ordering equipment and discovering later that the required capacity is not readily available.
The installation phase also needs planning. Switchboard and submain alterations may require shutdowns, so the project should identify acceptable working windows, critical systems, safe isolation requirements and any need for temporary arrangements.
What a useful capacity plan should provide
The final output should help the business make decisions rather than simply produce a list of electrical readings. Depending on the site and proposed development, a practical capacity plan may set out:
- the existing supply and distribution arrangement;
- measured demand and important operating patterns;
- identified limitations or condition concerns;
- the expected effect of proposed loads;
- options for controls, internal upgrades or supply changes;
- shutdown and phasing considerations;
- allowance for credible future expansion;
- the next information required from equipment suppliers or the network operator.
This allows electrical work to be coordinated with equipment procurement, building alterations and operational planning. It can also reduce the risk of installing one upgrade that obstructs a larger, more useful improvement later.
